型号 | 纤维类型 | 织物结构 | 抗拉强度 | 抗拉模量 | 断裂伸长 | 厚度 | 幅宽 |
Style | Reinforcement Yarn | Weave | Tensile Intensity | Tensile Modulus | Elongation | Thickness | Width |
MPa | GPa | % | mm | mm | |||
单向碳纤维布 High Strength Unidirectional Carbon Fiber Fabrics | |||||||

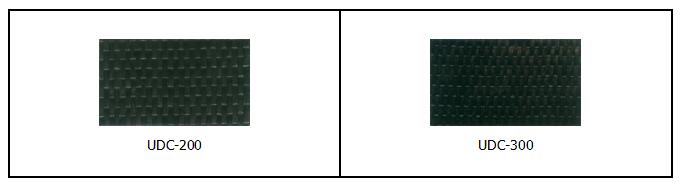

UDC-200 | 12K | 单向 Unidirection | ≥3500 | ≥230 | 1.8 | 0.111 | 600 |
UDC-300 | 12K | 单向 Unidirection | ≥3500 | ≥230 | 1.8 | 0.167 | 600 |
型号 | 纤维类型 | 织物结构 | 抗拉强度 | 抗拉模量 | 厚度 | 幅宽 |
Style | Reinforcement Yarn | Weave | Tensile Intensity | Tensile Modulus | Thickness | Width |
MPa | GPa | mm | cm | |||
单向芳纶布 High Strength Unidirectional Aramid Fiber Fabrics | ||||||
UAF-280 | 3360 dTex | 单向 Unidirection | ≥2060 | ≥118 | 0.194 | 60 |
UAF-350 | 3360 dTex | 单向 Unidirection | ≥2060 | ≥118 | 0.243 | 60 |
UAF-420 | 3360 dTex | 单向 Unidirection | ≥2060 | ≥118 | 0.288 | 60 |
型号 | 纤维类型 | 织物结构 | 抗拉强度 | 抗拉模量 | 断裂伸长 | 厚度 | 幅宽 |
Style | Reinforcement Yarn | Weave | Tensile Intensity | Tensile Modulus | Elongation | Thickness | Width |
MPa | GPa | % | mm | cm | |||
单向玄武岩布 High Strength Unidirectional Basalt Fiber Fabrics | |||||||
UBF-280 | 800Tex | 单向 Unidirection | ≥2800 | ≥85 | 3.2 | 0.100 | 60 |
UBF-300 | 800Tex | 单向 Unidirection | ≥2800 | ≥85 | 3.2 | 0.108 | 60 |
UBF-350 | 800Tex | 单向 Unidirection | ≥2800 | ≥85 | 3.2 | 0.110 | 60 |
注:1。单向玄武岩布经纬密度、单位面积质量、幅宽可根据用户要求生产。
